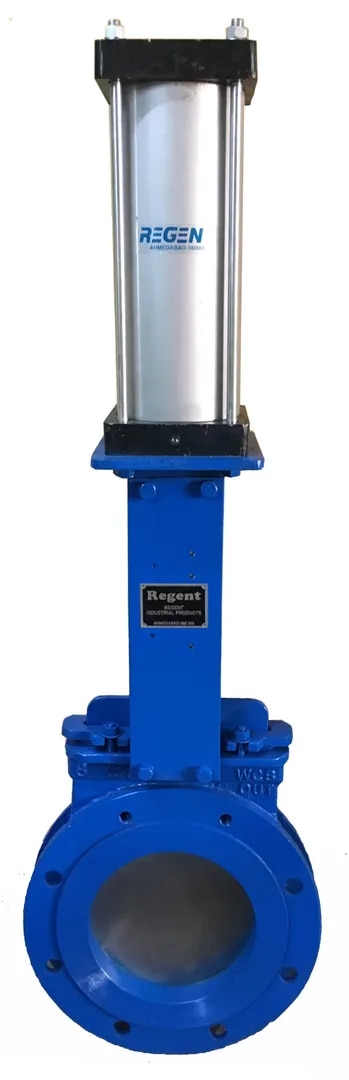

Regent Knife Gate Valve has Highest performance along with Zero Leakage Knife Edge Gate Valves withstand high Temperature & Abrasive Slurries in Mining, Steel, Power, Chemical, and Paper Industries Ideal for high-density Slurry Lines. Electromech Technical Services manufacturing uni-directional knife gate valve and bidirectional knife gate valve a wide range of knife gate valve manufacturer in a different models and number of different sizes of knife gate Valves using high grade of CI/ WCB/ SS304 and SS316 knife gate valves casting to suite to every specific application are honored as the finest one and has become an obvious choice in the user industries. our Knife Edge Gate Valve are one of the specific designs to ensures minimum contact between the parts of the valve to Reduces the Wear & Tear. Batten edge of the Gate (Knife-Edge) allows the tight shut off even when solid particles settles at the bottom of the Body. A wide variety of hardened trim options are available on Gate, Seat and Wear Ring and long life . Regent Knife Gate valve provides reliably on verity of tough application includes corrosive and abrasive application area, key aspects like operating load .easy of operation, service condition etc. are considered in design and construction to ensure long and maintenance free life The knife gate valve is simple to use and requires no maintenance. They have a longer life and are used for stopping and controlling the flow of abrasive slurries. Applications Of Knife Gate Valve : Available in different sizes, Electromech can be customized as per the needs and requirements of the customers. Knife edge Gate Valves for 1. Slurry Lines, 2. Sludge and Viscous Media Handling, 3. Pulp and Paper Stock Lines, 4. Dry Solid and Powder Handling, 5. High Temperature Gas Lines and Many More The design of the body and seat assures non-clogging shut off on suspended solids In industries such as: Pulp and Paper Power plants Mining etc. Chemical plants Wastewater Food and Beverage Pollution control equipment steel plant Regent Knife gate valve operated By. Handwheels Chainwheels Bevel gears Levers Pneumatic cylinders Hydraulic cylinders Electric motors etc. A full of accessories is ALSO OFFERED- Control accessories such as positioners, limit switches, Lubricator, solenoids, etc. Knife Gate Valves are designed and/or tested to meet the following standards: MSS SP-81 Metal Seated Valves : Stainless Steel, Bonnetless, Flanged Knife Gate Valves ANSI B16.5- 2" - 24" (50 - 600mm) Flanged Conforms to : Carbon Steel Flanges and Fittings, ANSI 150. Related drilling dimensions ANSI 16.47- 26" - 48" (650 - 1200mm) : Large diameter Steel Flanges. Series A.Conforms to related dimensions. ASME B16.20-2" - 48" (50 - 1200mm) Flanges. gasket : Metallic Gaskets for Pipe Conforms to Spiral-Wound Dimensions Features Precisely designed Accurate dimension Rust proof Corrosion-resistance Compact size Sturdiness This model knife gate is an uni-directional lug type valve designed according to MSS-SP-81 and TAPPI TIS 405-8 for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids In industries such as: Sizes: DN 2"/50mm to DN 24"/600mm Working pressure: DN 2"/50mm to DN 24"/: 150 psi / (10 kg/cm2) Design Features - Knife gate valve Type:Uni-directional / Bi-directional Knife Edge Gate Valve Body:• One piece integrally cast body with reinforced ribs in larger diameters for extra body.strength. • Internal cast guides allows for tighter shutoff. Port design according to MSS-SP-81 and Tappi TIS 405-8. • Internal design avoids any build up of solids that could prevent valve from closing. MOC - Cast Iron / Cast Steel / SS 304 / 316 / 316L Gate: • Standard AISI 316 stainless steel gate. • Gates polished and lapped for a greater seal between the gate with both packing and seat. • Bottom of the gate edge is machined to a bevel to cut through solids for a tighter • Seal in Closed position • The Stainless steel knife gate plate is precision-buffed on both sides, to enhance • Packing life and ensure positive shut off even heavy or high-viscous fluid Stem: Stainless steel or as desire, having double start thread rising / non-rising spindle, For fast closing and opening. Seat:Renewable Metal-to-Metal, replaceable type, soft seat and other Suitable to application. In addition to standard stainless steel seat ring, rubber ring and Teflon seat rings are Available as options. Gland Packing: Multi layer gland packing in a variety of materials to suit condition provides total sealing. Port:Round Port, "V" Notch End Connection:Flanged End / full Lugged, Wafer Flangeless, Two Lug, Wafer Flangeless, Flange Type, Wafer Size : 50mm to 500mm Drilling:Option Include ANSI, standard; Operation Avaliable:Knife edge Gate Valves Operation - Manual, Cylinder Operated, Electrical Actuator, Pneumatic Actuator with Manual Override. Actuator:Hand Wheel, Chain wheel, Bevel Gear hand wheel or chain wheel, Pneumatic Double Acting cylinder and electric actuator. Accessories:Flow-age Knife Edge Gate Valves also can be supplied with a wide range and variety of manual, pneumatic and electronic accessories as per suitable to service requirement. These all accessories are mostly bought-out from reputed suppliers. Selection Of Body Material:Cast Iron, WCB (Cast Carbon Steel), SS-304, SS-316 Selection Of Gate Material:SS-304, SS-316 Selection Of Gland Packing Material:P.T.F.E. Impregnated Asbestos yarn Square Graphite Asbestos yarn. Design And Testing of Kinfe Gate Valve MSS SP-81 applies to metal seated knife gate valves, 2" to 24" size, 150 psi. Resilient seated knife gate valves are not covered under MSS SP-81. These products are subject to the individual manufacturer's internal testing &design standard Body : MSS SP-81 requires the valve body (pressure vessel and related structure) to be designed for and hydrostatically pressure tested to 1.5 times the rated working pressure. Valve rated pressure - 150 psi Body test pressure - 225 psi Gate : MSS SP-81 requires the gate to be designed for and hydrostatically pressure tested to 1.1 times the rated working pressure. Valve rated pressure - 150 psi Gate test pressure - 165 psi Seat : MSS SP-81 has an allowable leakage rate (for metal to metal seated valves) of 40 cc per inch of diameter, per minute at 40 psi pressure. On a 12" valve this would be equal to 40 times 12, or 480 cc per minute at 40 psi. Maximum allowable leakage of 2.73 LTR/MIN when tested with water at 40 psi applies in normal flow direction No visible leakage when tested with water at 40 psi (for soft seated valves only). Face to Face : MSS SP81 has specified face to face dimension and tolerance for each valve size to assure ease of installation for the consumer, regardless of the valve manufacturer Application and Temperature Range Of Sealing Materials EPDM - Advantages: It has excellent resistance to heat, ozone and sunlight, very good flexibility at low temperature, good resistance to alkalis, acids, and oxygenated solvents and superior resistance to water and steam. Limitations: poor resistance to oil, Gasoline and hydrocarbon based solvents. Maximum continuous operating temperature - 40°C / +100°C. NBR-NITRIL - Advantages : very good resistance to oil, gasoline, alkalis and acids, good resistance to hydrocarbon based solvents. Limitations: inferior resistance to ozone and oxygenates solvents. Maximum continuous operating temperature -30°C / +90°C. GUM RUBBER -This category includes all natural gum elastomers, both filled and unfilled and synthetic. It has high tensile strength, superior resistance to tear and abrasion and good flexibility at low temperatures. Maximum continuous operating temperature +75°C. VITON - Advantages : very good resistance to ozone and sunlight, very good flexibility at low temperature, good resistance to alkalis and acids and very good resistance to hot water. Maximum continuous operating temperature - 40°C / +230°C.
