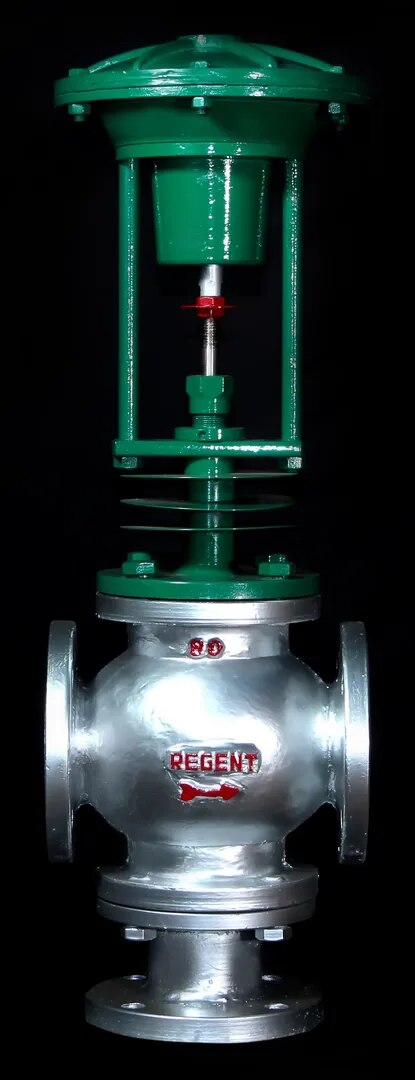

Diaphragm Operated Pneumatic Control Valve 3 Way

In line with clients variegated requirements, we bring forth a distinguished collection of the 3 Way Diaphragm Operated Pneumatic Control Valve. This valve is manufactured at our ultra-modern production unit utilizing the superb quality raw material and innovative technology in conformance with defined quality standards. Extensively used to control the flow of liquid, air and gas, this valve is tested on various parameters to ensure its quality.

3 way Diaphragm operated Pneumatic Control Valve for Mixing/Diverting Duty.

Accessories Optional:

• Electro Pneumatic Valve Positioner

• Modulating Controller: 4-20mA PID Controller (Available on Request)

• 4-20mA Position Transmitter

• Solenoid Valve 230 V AC/ 110 V AC / 12 V DC / 24 V DC

• Manual Override

Specification:

Model: RD3

Size: 15 mm(1/2”) to 200 mm(10”)

Body/Bonnet: ASTM A216 Gr. WCB/ASTM A351 Gr. CF8/CF8M

Type of Plug: On-off or Linear or Equal Percentage

End Connections: Flanged Ends ANSI B16.5 Cl.150, Cl. 300, PN 16 & PN25 (600

available on request)

Pressure Rating: ANSI B16.5 Cl.150, Cl. 300

Temperature Rating: Max 400°C

Gland Packing: Teflon/Grafoil/Expanded Graphite

Seat: Metal Seated/Soft Seated

Plug Material: S.S. 410,S.S. 304,S.S.316,Stellite

Stem Material: S.S. 410,S.S. 304,S.S.316,Stellite

Actuator: Diaphragm type Single Acting

Diaphragm: Nylon inserted high nitrile, roll form type

Fluid: Hot thermic fluid, hot water, steam, oil, gas etc.
