Direct Acting Solenoid Valve
INR 485
In stock • cod available
Description

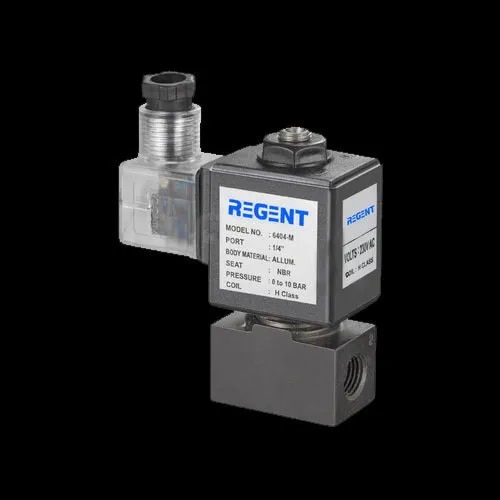

REGENT Pilot Operated Direct Acting Solenoid Valve
1/4"-1” 2/2, 2/3 Way NC Pilot operated Direct Acting Solenoid valve.
Specification:
Port Size:1/4-1” BSP/NPT
Pressure:0 bar to 10 bar
Body Material:Aluminum
Diaphragm:Nitrile (NBR), Viton (FKM), EPDM
Orifice:2 mm.
Circumstance Temp:-10 °C to 100 °C
Media Temp:10 °C to 90 °C
Operating Voltage:AC: 24V, 48V, 110V, 220V, 230V, 240V (50HZ)
Power Consumption:5.5W, 7.5W, 8.5W, 9.5W, 12W, 22W
Operating Voltage:DC: 12V, 24V
Power Consumption:10W, 11W
Features:High Reliability Unaffected by pressure Surges.
Easy coil changes Coil lockable in 4Χ90, Position or freely movable in between as require.
Media:Air, Water, Chemical, Inert Gases, Oil, Diesel, Kerosene, LPG.
