Gate Valve

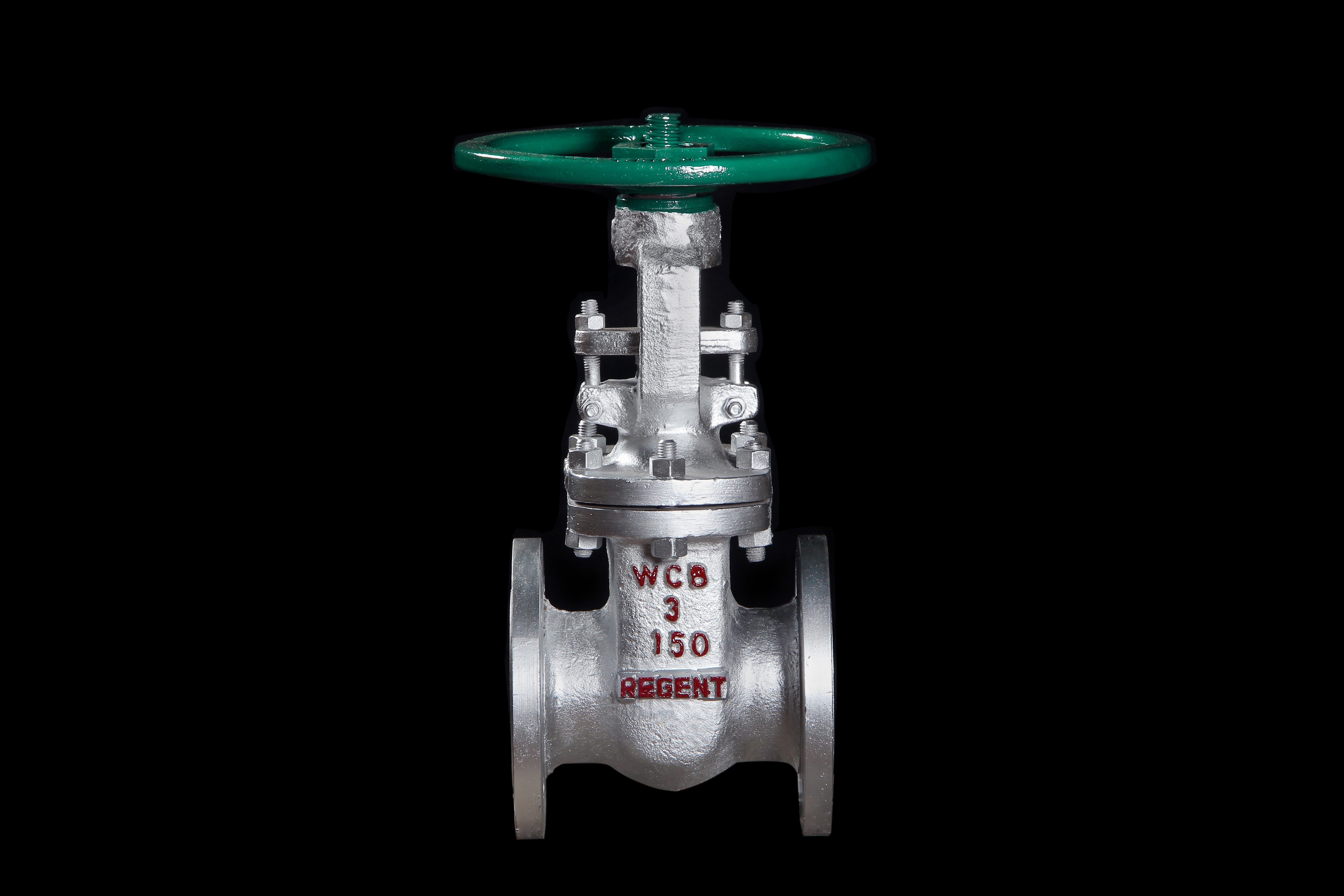

Regent Gate Valves are Outside Screw & Yoke, Bolted bonnet & with Rising stem. The “STRAIGHT THROUGH BORE” design assures minimum turbulence, erosion and resistance to flow caused by pockets & recesses. Gate Valves are mainly used where minimum pressure drop is a requirement.

Design Features:

Designed for exceptionally low pressure drop

Back seating arrangement permits the replacement of packing with valve under fully open condition

Two piece design of gland flange provides centralizing effect to the gland sleeve, thus producing a uniform clamping pressure on the packings.

Standards Applicable:

Design Standard : API 600

Testing Standard : API 598

Face to Face : ASME B 16.10

End Connection:

Flanged End : ASME B 16.5

Butt Weld End : ASME B 16.25

Pressure Temperature : ASME B 16.34

Valve Operation:

Operator: Hand wheel

Size Range:

2" - 10" – Class 150, 300

2" - 4" – Class 900, 1500

Operator: Gear Operator

Size Range

12" & above – Class 150, 300

6" & above – Class 900 & 1500

Material Structure:

End Connection: Flanged end raised face, Butt weld end, RTJ, etc.

Operation : Hand wheel, Gear operator, Electrical Actuator, Pneumatic, Hydraulic

Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu,Inconel, Duplex Stainless Steel.

Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel.

Control Operation:Manual, Pneumatic, Electric
