Description

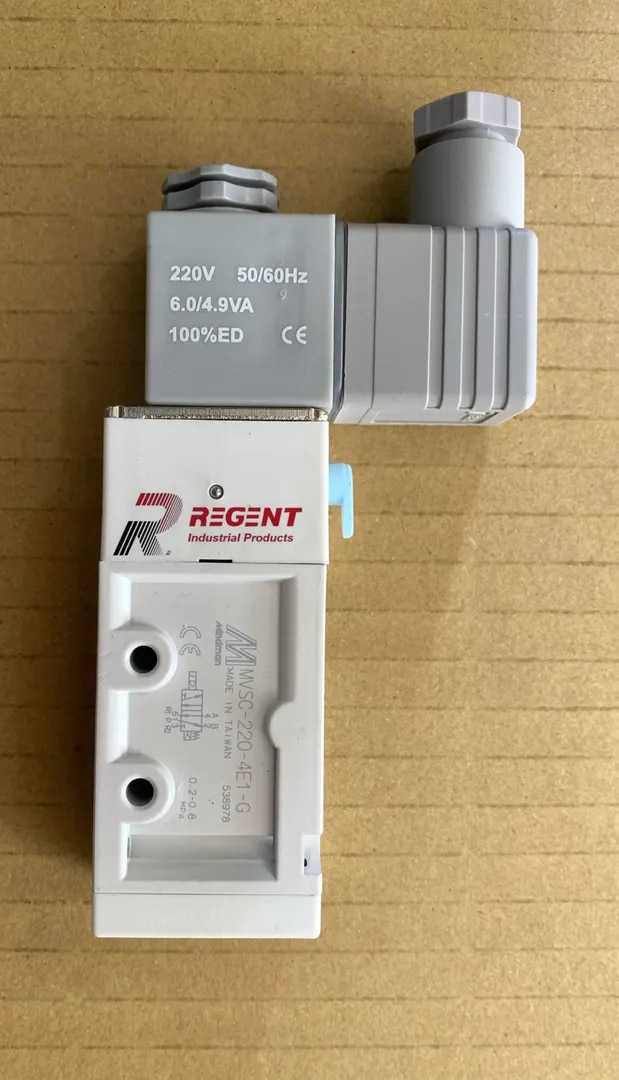

MVSC-220
Bore No. 8A, Port size: Rc1/8, Rc1/4, No.of port: 3, 5, No.of position: 2, 3, Operating pressue: 0~0.8 MPa, Proof pressure: 1 MPa.
Bore No. 6A, 8A
Port size Rc1/8, Rc1/4
No. of port 3, 5
No. of position 2, 3
Medium Air
Operating pressure range 0.2~0.8 MPa, 0.3~0.8 MPa
Operating pressue (LP) 0~0.8 MPa
Pilot pressure range (LP) (0.34×P*+0.1)~0.5 MPa
Proof pressure 1 MPa
Effective orifice 16mm2, 18 mm2
Response time 30 ms, 40 ms
Ambient temperature －5~＋50℃ (No freezing)
Voltage AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Available voltage range ±10%
Insulation class F class
Weight 181g, 294g, 198g, 313g, 352g
Remark * P: Operating pressure
