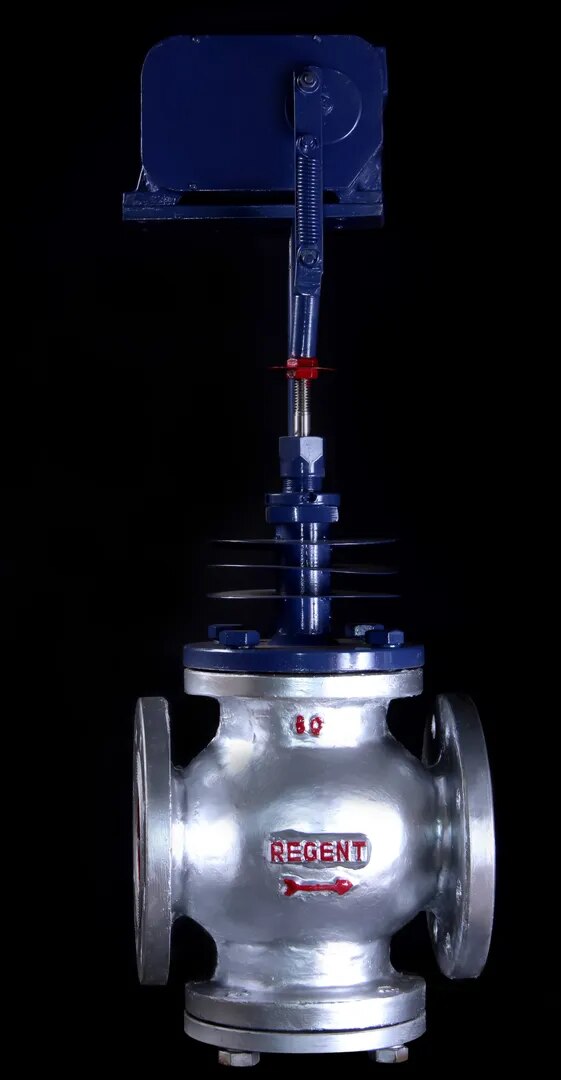

MOTORISED CONTROL VALVE 2 WAY

2 way Motorised Control Valve for Inching & Throttling Application.

Accessories Optional:

• 4-20mA Input Modulating Controller

• PID Temperature Controller (Available on Request)

• 4-20mA Position Transmitter

• Maniual Override

Specification:

Model: RM2

Size: 15 mm(1/2”) to 200 mm(10”)

Body/Bonnet: ASTM A216 Gr. WCB/ASTM A351 Gr. CF8/CF8M

Type of Plug: On-off or Linear or Equal Percentage

End Connections: Flanged Ends ANSI B16.5 Cl.150, Cl. 300, PN 16 & PN25 (600 available on c n request)

Pressure Rating: ANSI B16.5 Cl.150, Cl. 300

Temperature Rating: Max 400°C

Gland Packing: Teflon/Grafoil/Expanded Graphite

Seat: Metal Seated/Soft Seated

Plug Material: S.S. 410,S.S. 304,S.S.316,Stellite

Stem Material: S.S. 410,S.S. 304,S.S.316,Stellite

Actuator: Motorised

Electric Supply: 230 V AC / 440 V AC 50 Hz

Electric Motor: Single phase, permanent split phase capacitor type class ‘F’ insulated motor.

Position on Power Failure: Stayput

Fluid: Hot thermic fluid, hot water, steam, oil, gas etc.
