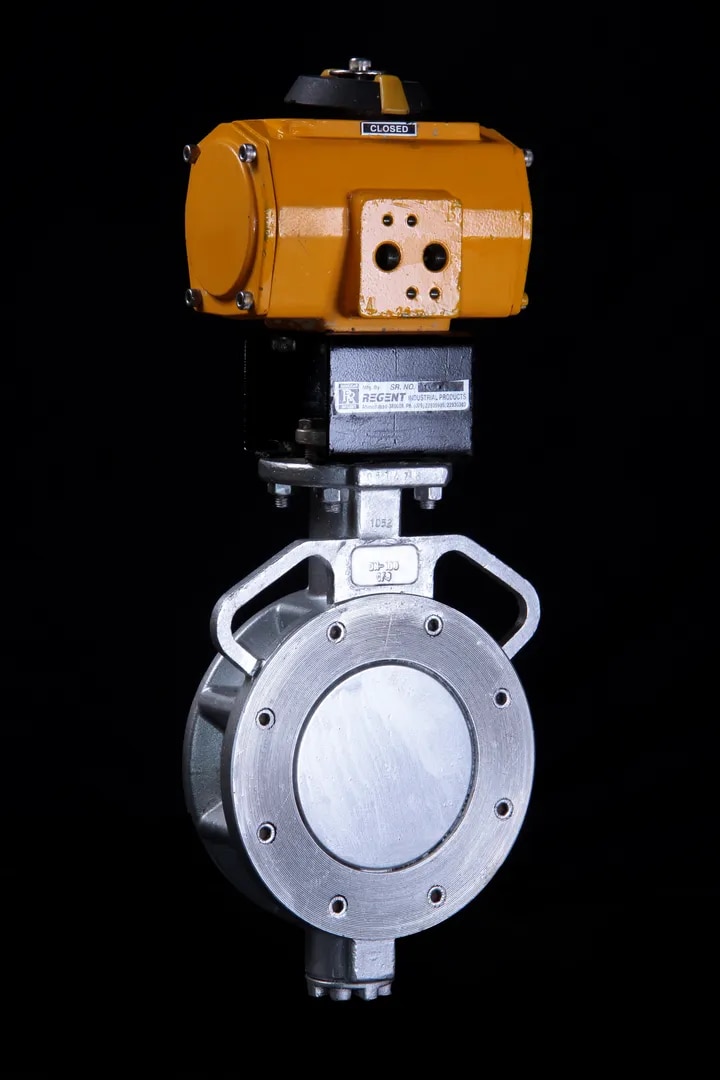

OFFSET DISC BUTTERFLY VALVE METAL TO METAL

Metal to Metal PNEUMATIC Spherical Disc Butterfly Valve that is mainly used for regulating various kinds of fluids.

Features:

High structural strength

Flawless finish

Rust proof

Metal to Metal Spherical Disc Butterfly Valve.

Operation can be from Lever/Gear/Electro Pneumatic/Electrically Actuated/Cylinder Operated.

Specification:

Model: RBIC

Size: 50 mm(2”) to 300 mm(12”)

Valve Design: Wafer Type High Performance Double Eccentric Disc Design

Pressure Rating: ANSI Class 150#

Body: Cast Carbon Steel, Cast Stainless Steel

Disc: Cast Carbon Steel, Cast Stainless Steel

Shaft: S.S. 410/S.S. 304

Gland Seals: Metal to Metal / PTFE SEAT

Operating Temperature: up to 250 °C

Actuator: Single Acting (Spring return) / Double Acting / Motorised

End Connections: Wafer type in rating PN 6, PN 10; Flanged type in #150
