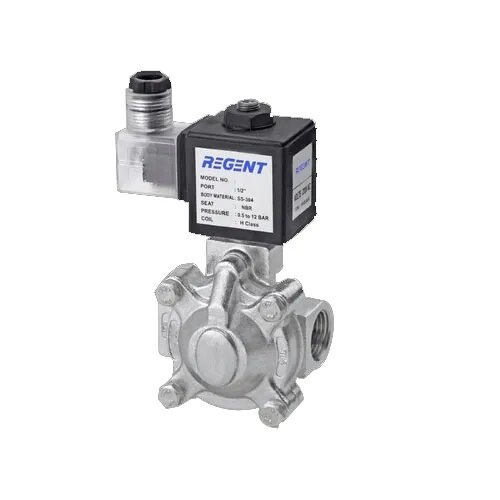

Name: Pilot Operated Diaphragm Type Solenoid Valve
Price: 500 INR
Availability: OutOfStock

Chat with us

Pilot Operated Diaphragm Type Solenoid Valve

INR 500

Out of stock•cod available

Phone Number

08048053832

Please keep 0 before dialling the number.

Email Address regentvalve@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address C-2/2, Mohan Estate, Opp. Anupam Cinema, AHMEDABAD-380008

Ahmedabad, India, 380008

Description

Regent Pilot Operated Diaphragm Type Solenoid Valve Specification: Port Size:1/4-4” BSP/NPT Pressure:0 Bar to 10 Bar Body Material: S.S. CF8 / CF8m Diaphragm:Nitrile (NBR), Viton (FKM), EPDM Orifice:2 mm Circumstance Temp.:-10 °C to 100 °C Media Temp.:10 °C to 200 °C Operating Voltage:AC : 24V, 48V, 110V, 220V, 230V, 240V (50HZ) Power Consumption:5.5W, 7.5W, 8.5W, 9.5W, 12W, 22W Operating Voltage:DC : 12V, 24V Power Consumption:10W, 11W Features:High Reliability Unaffected by pressure Surges. Easy coil changes Coil lockable in 4 x 90, Position or freely movable in between as require. Media:Air, Water, Chemical, Inert Gases, Oil, Diesel, Kerosene, LPG.
