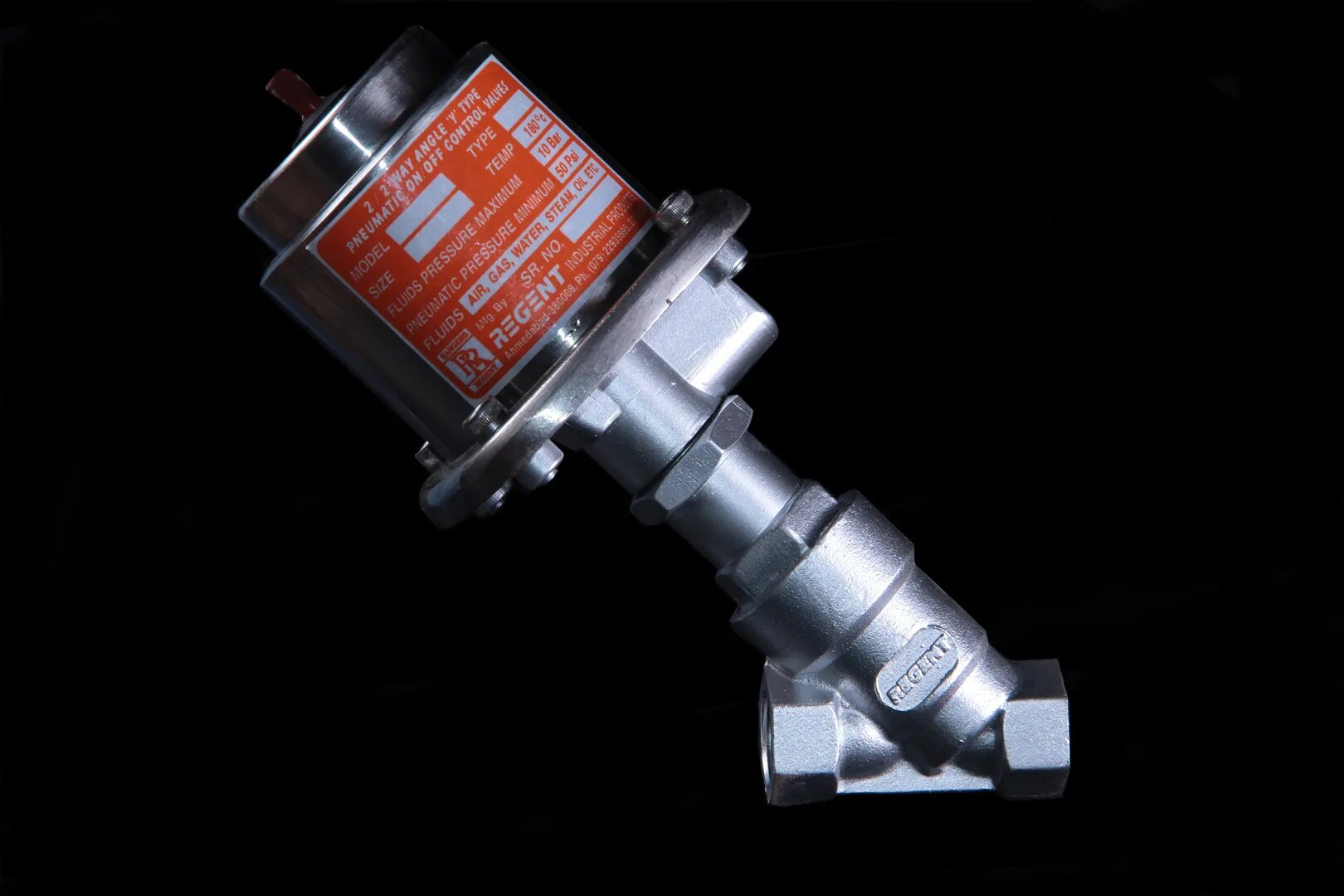

PNEUMATIC ANGLE TYPE VALVE
INR 2000
In stock • cod available
Description
Y Type PNEUMATIC Control Valve. This valve is used to control steam, water, air and gas via on-off application.
Features:
Sturdy construction
High strength
Elevated durability
Specification:
Port Size: ½″ to 4” BSP / Flanged End ASA 150#
Body & Sleeve: SS ASTM A351 Grade CF8/CF8M
End Connection: Screwed/ Flange
Max. Working Pressure: 0 bar to 16 bar
Pnem. Pressure: 3.5 to 7 bar.
Shaft: SS-304 / SS-316
Seat: Teflon Optional Viton/EPDM.
Seal & O Ring: Viton, EPDM, NBR.
Fluid Temp: -10 °C to 180 °C
Ambient Temp.: -10 °C to 60 °C
Media: Air, Water, Steam, Gas, Oil, Fuel, Liquid, Vacuum
Actuator Type:
Actuator Cover: SS-304
Actuator Flange: Aluminum Die Cast (Hard Anodised)
Actuator Working pressure: 3.5 to 7 bar
