PNEUMATIC BALL VALVE

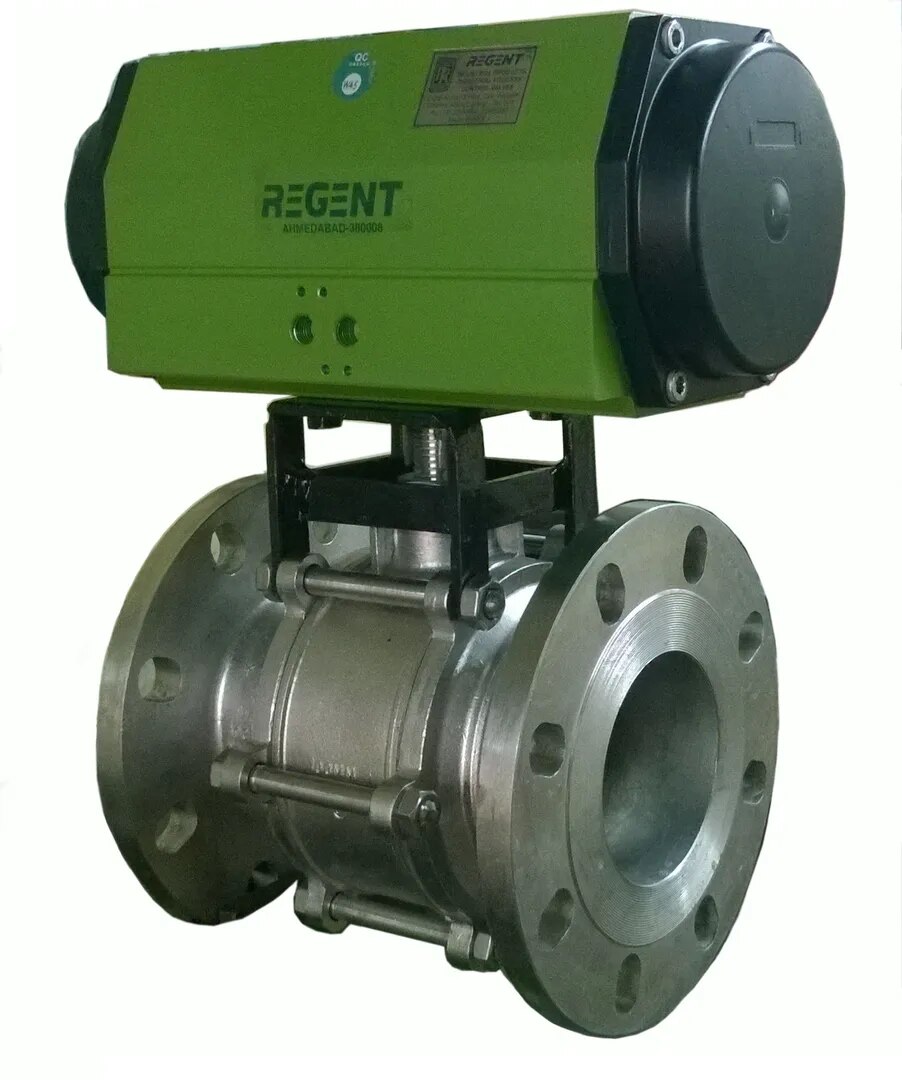

REGENT PNEUMATIC ROTARY ACTUATOR OPERATED 3pc. DESIGN BALL VALVE

Standard Pneumatic Actuator Operated Investment Casting WCB/CF8/CF8M/CF3M Ball Valve in Three Piece design,engineered for Multiple On/Off operations in the down stream

Size Range: 1/2" to 10" Screwed/Flanged/Tri Clover/Socket Weld

Acessories:

On/Off Indicator

Namur Standard Solenoid Valve in all Standard Coil Voltage

Pneumatic & Electropneumatic Valve Positioner

Deluctchable Manual Over-ride

Limit Switches for On/Off Indication at Panel Board

Filter + Regulator Combination with Pressure Gauge

Air Lock Valve

Standard:

Desing & Manufacturing : ASME B 16.34/BS EN ISO 17292/ API -6D

Valve Face to Face Dimension : ASME B 16.10

Flange Standard Conformity : ASME B 16.5 Class 150,Class 300

Inspection & Testing : API 598/ FCI-70-2/BS EN 12266-1/API-6D
