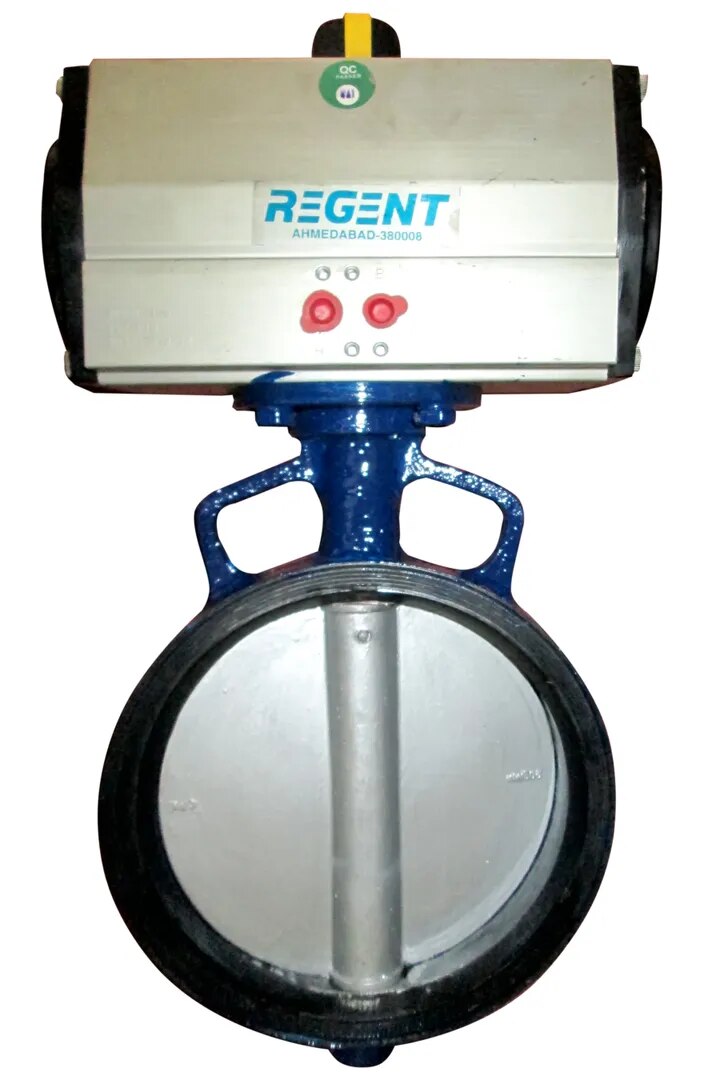

PNEUMATIC BUTTERFLY VALVE

With the help of our team of highly experienced professionals, we are involved in offering our clients an extensive assortment of Centric Disc Butterfly Valve. Our offered valve has inbuilt disc that rotates on shaft to control the flow of fluid. This valve is widely acclaimed for its simple design yet large capacity to handle liquid in bulk amount. Customers can avail this optimum quality valve from us at most affordable prices.

Features:

Low leakage rate

Large capacity

High anti-erosion ability

Operation can be from Lever/Gear/Electro Pneumatic/Electrically Actuated/Cylinder Operated.

Specification:

Model: RBF

Size: 50 mm(2”) to 300 mm(12”)

Valve Design: Centric Disc Butterfly Valve with Single Piece Rubber Lined Body

Pressure Rating: PN 10/PN 16

Body: Cast Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel

Disc: Cast Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel with Teflon/Powder/Nylon Coated & Rubber line

Shaft: S.S. 410/S.S. 304/S.S. 316

Seat type: Integrally Molded with Body(Renewable Seat)

Seat Material: Nitrile, EPDM, Viton, Silicon, Neoprene

Actuator: Single Acting (spring return) / Double Acting / Motorised / Gear operated / Lever operated

End Connections: Wafer type/Lug type in rating PN 6, PN 10; Flanged type in #150
