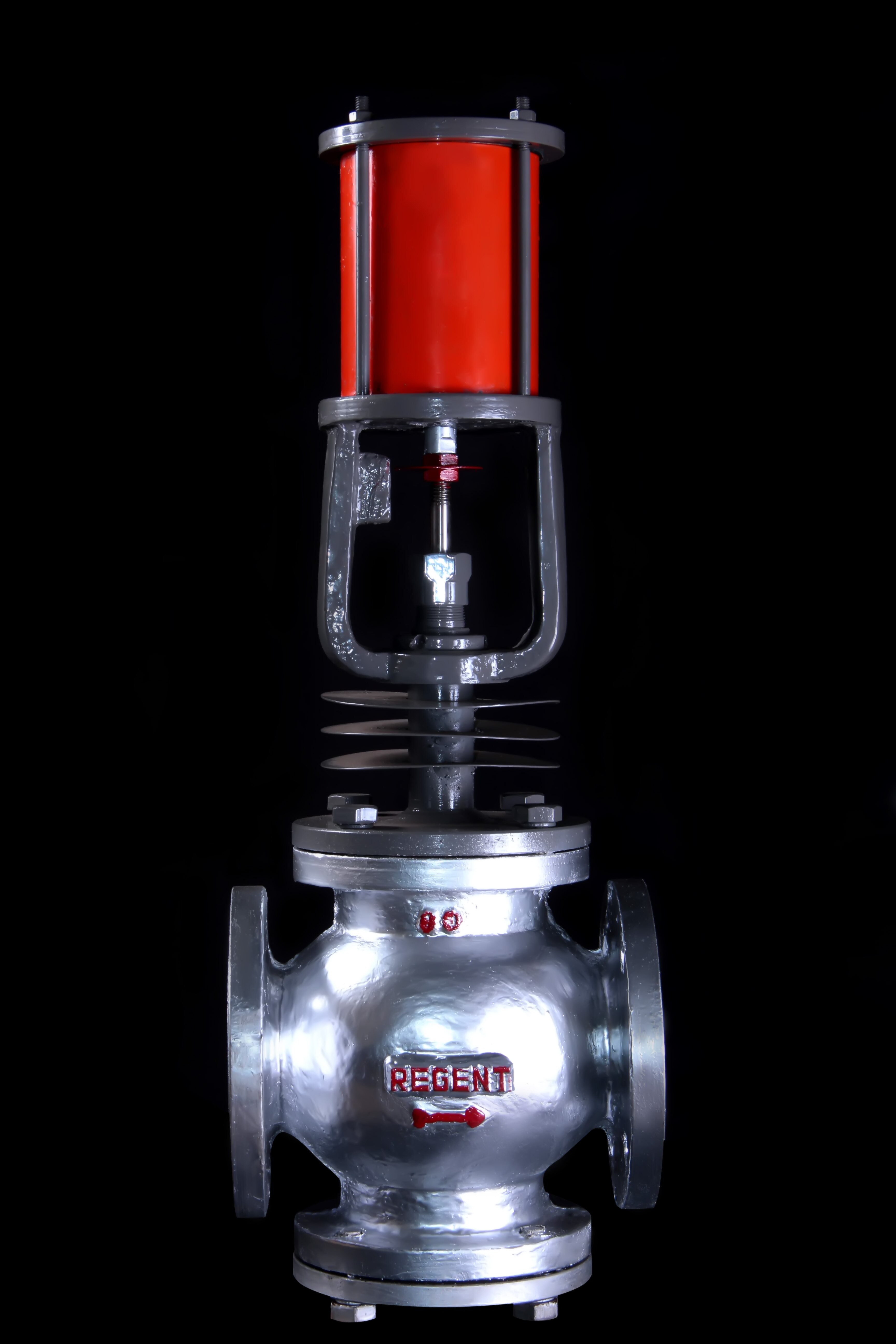

Pneumatic Cylinder Operated Control Valve 2 WAY

Our reputation in the market is largely attributable to our precision-designed 2 Way Pneumatic Cylinder Operated Control Valve from our extensive collection of products. The provided valve is manufactured by utilizing the finest quality raw material and progressive by our skilled professionals. The valve offered by us is used to control the flow of liquids and gases optimally. Furthermore, remarkable quality and high functionality increase the demand of this valve in the market.

2 way Cylinder operated Pneumatic Control Valve for On Off Application.

Accessories Optional:

• PID Temperature Controller

• Solenoid Valve 230 V AC/ 110 V AC / 12 V DC / 24 V DC

• Manual Override

Specification:

Model: RC2

Size: 15 mm(1/2”) to 200 mm(10”)

Body/Bonnet: ASTM A216 Gr. WCB/ASTM A351 Gr. CF8/CF8M

Pneumatic Cylinder: Single Acting / Double Acting

Type of Plug: On-off or Linear

End Connections: Flanged Ends ANSI B16.5 Cl.150, Cl. 300, PN 16 & PN25 (600

available on request)

Pressure Rating: ANSI B16.5 Cl.150, Cl. 300

Temperature Rating: Max 400°C

Gland Packing: Teflon/Grafoil/Expanded Graphite

Seat: Metal Seated/Soft Seated

Plug Material: S.S. 410,S.S. 304,S.S.316,Stellite

Stem Material: S.S. 410,S.S. 304,S.S.316,Stellite

Actuator: Cylinder type Single Acting / Double Acting

Cylinder: Hard anodised Aluminum Cylinder

Fluid: Hot thermic fluid, hot water, steam, oil, gas etc.
