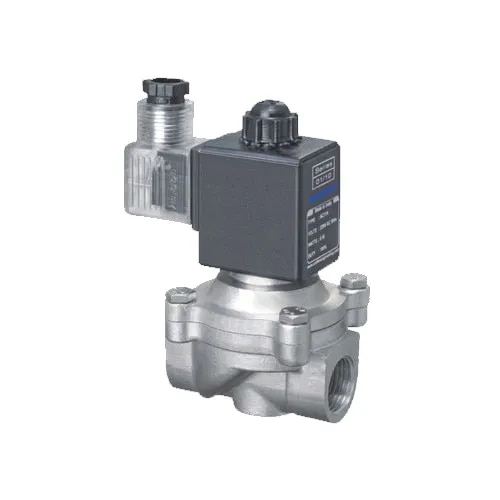

Semi Lift Diaphragm Operated Solenoid Valve
INR 600
In stock • cod available
Description
REGENT make Piot Operated Semi Lift Diaphragm type Solenoid Valve
Specification:
Port Size
½-1” BSP/NPT
Pressure
0 bar to 2 bar
Body Material:Brass,SS ASTM A351 Grade CF8/CF8M
Diaphragm:Nitrile (NBR),EPDM,Viton, Silicon (Food Grade)
Orifice:16.50 mm
Circumstance Temp.:-10 °C to 100 °C
Media Temp.:10 °C to 200 °C
Operating Voltage:AC : 24V, 48V, 110V, 220V, 230V, 240V (50HZ)
Power Consumption:5.5W, 7.5W, 8.5W, 9.5W, 12W, 22W
Operating Voltage:DC: 12V, 24V
Power Consumption:10W, 11W
Features:High Reliability Unaffected by pressure Surges.
Easy coil changes Coil lockable in 4 x 90, Position or freely movable in between as require.
Media:Air, Water, Chemical, Inert Gases, Oil, Diesel, Kerosene, LPG
