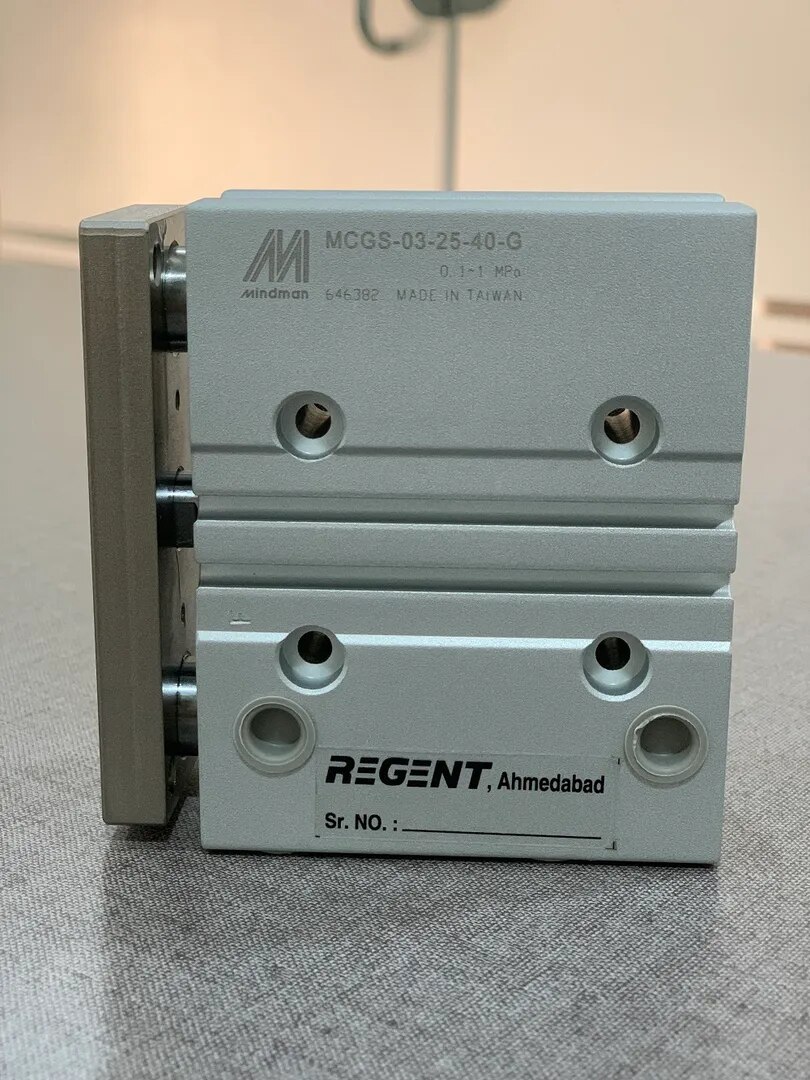

Twin-Guide Cylinder MCGS | Mindman Pneumatic India
Tube I.D. φ6, 10, 12, 16, 20, 25, 32, 40, 50, 63 (mm). Proven track record in manufacturing precision guided cylinders. Multi-Ports as standard enabling two direction mounting option.
Features
Multi-Ports as standard enabling two direction mounting option.
Non-rotating accuracy ± 0.1° (φ6, φ10 mm).
Flush fitting sensors.
Inbuilt high density rubber pad absorbs energy at the end of stroke.
Magnetic as standard.
SPECIFICATIONS
Tube I.D. (mm) 6, 10, 12, 16, 20, 25, 32, 40, 50, 63
Port size M3×0.5, M5×0.8, Rc1/8, Rc1/4
Medium Air
Operating pressure range φ6, φ10: 0.15~0.7 MPa, φ12~φ64: 0.1~1 MPa
Proof pressure φ6, φ10: 1 MPa, φ12~φ64: 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Available speed range φ6, φ10: 50~400 mm/sec, φ12~φ64: 50~500 mm/sec
Cushion With rubber cushion pad
Sensor switch φ6, φ10: RDGV, φ12~φ64: RCE, RCE1, RDEP
Remark ※ φ6, φ10: This product is not applicable for stopper purpose.
※ φ6, φ10: If stroke length is 10mm or less, only single sensor can be installed.
