Description

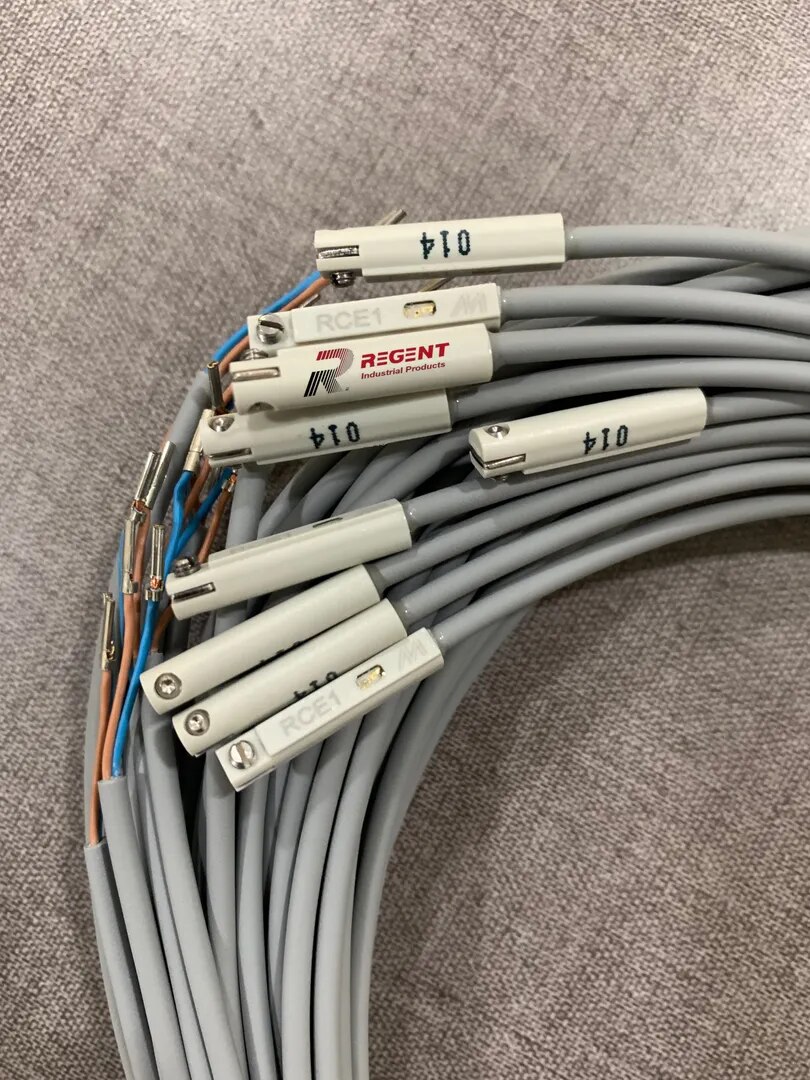

RCE1
RCE1-Voltage range: 5~120V DC/AC, RDE1E / RNE1E / RPE1E-Voltage range: 5~30V DC. Assembling style: MCJQ MCJT, MCFA, MCGB, MCGD, MCGJ, MCG3, MCGS, MCRA, MCKB, MCDA, MCSH ,MCSS, MCHA, MCHB,MSB*, MSL*.
Specification
Order Example
CAD Download
Accessory
Wiring method 2 wire, 3 wire
Switching logic Solid state output, normally open
Switch type Reed switch, NPN current sinking, PNP current sourcing
Operating voltage 5~120V DC/AC, 5~30V DC
Switching current 100mA, 50mA, 80mA (max.)
Switching rating 10W, 1.5W, 2.2W (max.) (※1)
Voltage drop 3.5V, 0.5@50mA (max.)
Indicator Red LED
Cable φ2.8,2C,PU, φ2.6,2C,PVC, φ2.6,3C,PVC
Temperature －10~70℃ (No freezing)
Shock 30G, 50G (※2)
Vibration 9G (※3)
Enclosure classification IP529 IP67
Protection circuit 1, 3,4 (※4)
Weight 20g (2m cable)
Remark ※1. Warning: Never exceed rating (watt=voltage×amperage). Permanent damage to sensor will occur.
※2. Sin wave / X.Y.Z. 3 directions / 3 times each direction / 11ms each time.
※3. Double amplitude 1.5mm / 10Hz~55Hz~10Hz(Sweep 1min) / X.Y.Z. 3 directions / 1 hour each time.
※4. 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression.
