A Limit Switch Box plays a critical role in industrial automation systems by accurately monitoring and controlling valve positions. This essential device provides clear, real-time position feedback to operators, significantly increasing process safety, efficiency, and reliability across manufacturing and processing plants.
What is a Limit Switch Box and How Does It Work?

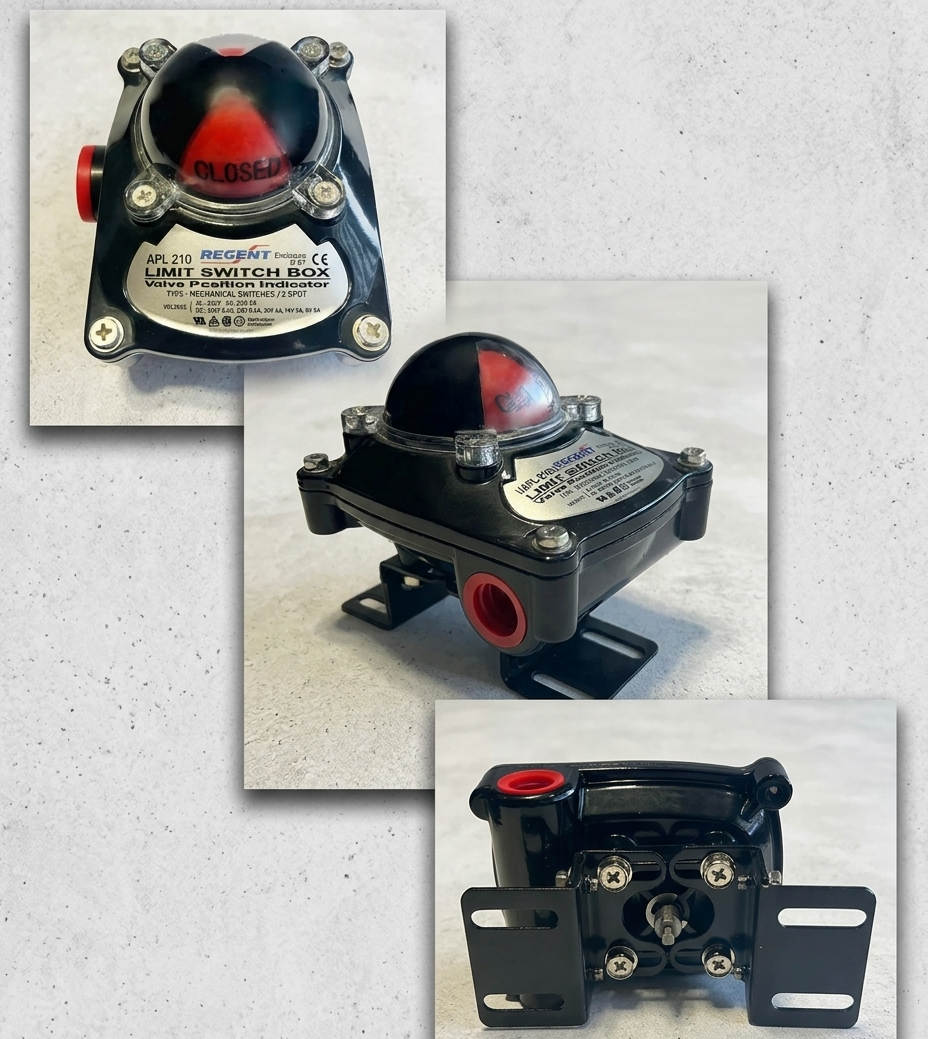

A Limit Switch Box is a specialized control unit that converts the open or closed position of actuated valves into reliable electrical signals.
- Signal Transmission: The device transmits precise data to the main system control panel through high-quality mechanical switches or proximity sensors triggered by the movement of the valve stem.
- Remote Monitoring: This automation allows operators to remotely monitor the exact status of the valve in real time, eliminating the need for manual, on-site inspections.
- Malfunction Prevention: beyond data transmission, these robust devices act as a fail-safe, preventing potential system malfunctions and interlocking processes when a valve fails to stroke correctly.
Key Industrial Applications and Areas of Use
Limit Switch Box devices are highly preferred in demanding industries where process safety, explosion-proofing, and precision control are non-negotiable.
Common sectors include:
- Chemical and Petrochemical Plants: For managing aggressive fluids and hazardous environments.
- Power Generation Facilities: Ensuring reliable operation in steam, cooling, and water cycles.
- Water and Wastewater Treatment Systems: Automating flow control and isolation valves.
- Food & Beverage Processing Lines: Maintaining strict process control and hygiene standards.
Whether deployed in heavy heavy-duty industries or complex automated manufacturing setups, these position indicators offer universal compatibility
Technical Specifications and Selection Criteria
When selecting a valve position monitor, matching the instrument to your environmental and operational demands is critical for longevity.
Technical Parameters to Consider:
- Enclosure Protection: Look for high ingress protection classes like IP67 or IP68, which ensure maximum resistance against heavy dust, moisture, and outdoor weathering.
- Hazardous Area Certifications: For explosive atmospheres, ensure the unit carries proper ATEX / IECEx certification.
- Switch Configuration: Choose between mechanical micro-switches, magnetic proximity sensors, or inductive sensors based on your control system interface.
- Mounting Compatibility: The mounting flange, bracket, and connection apparatus must seamlessly align with the rotary actuator shaft (typically following NAMUR VDI/VDE 3845 standards).
Why Choose Regent Valve Automation Solutions?
The Regent brand stands out as a trusted provider of high-quality, dependable components in the field of industrial automation. Our engineered switch boxes feature:
- Durable Enclosures: Rugged die-cast aluminum or stainless steel housings built for harsh environments.
- Modular Design: Quick-set cams and flexible terminal strips for easy field wiring.
- Comprehensive Support: Dedicated technical assistance and product consultancy to optimize your processes.
Optimize your plant flow control with reliable, industrial-grade solutions. Visit the Regent platform today for comprehensive product documentation, dimensions, and ordering information.
