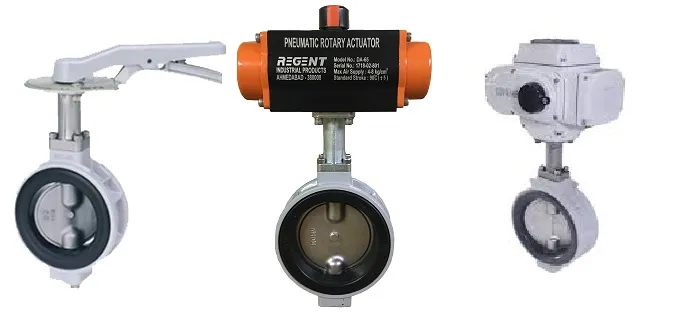

REGENT MAKE Butterfly Valve Aluminium Body with Ex...

REGENT MAKE Butterfly Valve Aluminium Body with Extended Stem for Installation and automation for various
piping designs and installation environment.

Features : -
 Wide range of service applications :
Stainless steel discs and EPDM rubber seats can
handle many different kinds of line fluid without
concern of corrosion.

 Rust prevention :
Parts exposed are Rust Proof SS 304 Grade, body
coated with epoxy all weather proof coating.

 Torque Sabilizer :
A unique feature involving Stem bearing around the
top and bottom stem to prevent stem galling and
reduce torque for smooth operation.

 Universal Mounting:
The actuator mounting pads of all necks are designed
in conformity with ISO 5211 requirements for direct
on-site mounting of actuators which are provided with
ISO 5211 valve mounting flanges.

 Extended Stem (Prevention of dew formation) :
SS 3404 Extended Neck preserves flow temperature, hence due condensation is minumised
incase of cold water service.

 Easy valve-to-flange centering :
Light weight of die-cast aluminum valve body eases valve-to-flange centering work on mounting
valves on pipelines.

Actuation
Manual / Pneumatic / Motorised
